Heat transfer presses are used to apply graphics onto the target substrate using high temperature and pressure. Heat presses differ in their opening mechanisms (manual or automatic, clamshell or swing-away), temperature range, and additional features. This variety of heat transfer presses makes it possible to perfectly match the machine to individual needs. They can be used for techniques such as sublimation, flex and flock films, sublimation and solvent-based flex and flock, DTF, or transfers from laser and inkjet printers.

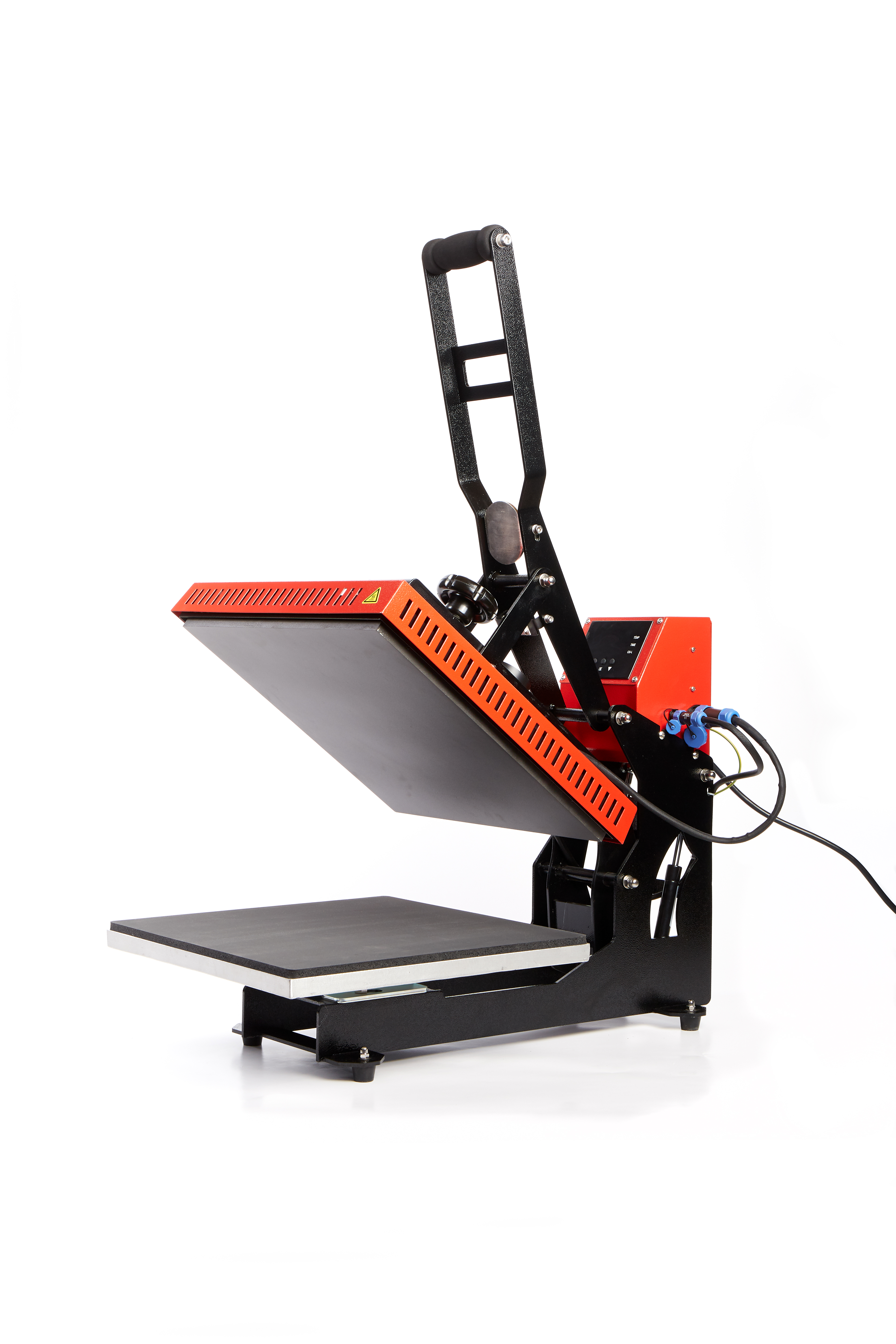

TC5 LITE 38 x 38 cm Heat Press – modular, automatic clamshell press
The press has a fully modular design, consisting of: control unit, heating plate, lower plate, base frame, and power cable. All modules can be easily disassembled and replaced in just a few simple steps, allowing for broad customization depending on requirements
The transfer press can optionally be equipped with interchangeable plates in various sizes, a membrane lower plate, or dual-plate slide rails. It can also be expanded with a Bluetooth module
The press opens automatically once the set time has elapsed and notifies the user with an audible signal. The pressing process can be interrupted at any time by pressing a single button. Temperature and pressing time are selected via a digital controller
The pressure is adjusted using a knob located on top of the heating plate. The press also features an additional cover on the heating plate to protect the user from burns.
Specifications
Plate size: 38 x 38 cm
Max. pressure: 250 g/cm
Max. pressing temperature: 225 °C
Max. pressing time: 999 seconds
Max. opening angle: 40°
Voltage/Power: 230 V / 50Hz–60Hz / 1.8 kW
Operating conditions: +5 to +35 °C / 30–70% humidity
Net weight: 32 kg
Weight with packaging: 40.60 kg
