Heat Transfer Presses
Heat transfer presses are used to transfer graphics onto target materials using high temperature and pressure. The presses differ in their opening mechanisms (manual or automatic, clamshell or swing-away types), temperature ranges, and additional features. This variety of heat transfer presses allows for perfect customization to meet individual needs—ideal for printing on T-shirts, sweatshirts, bags, and other media.
They can be used with various transfer techniques such as sublimation, flex and flock foils, sublimation and solvent flex/flock, DTF, or transfers from laser and inkjet printers.

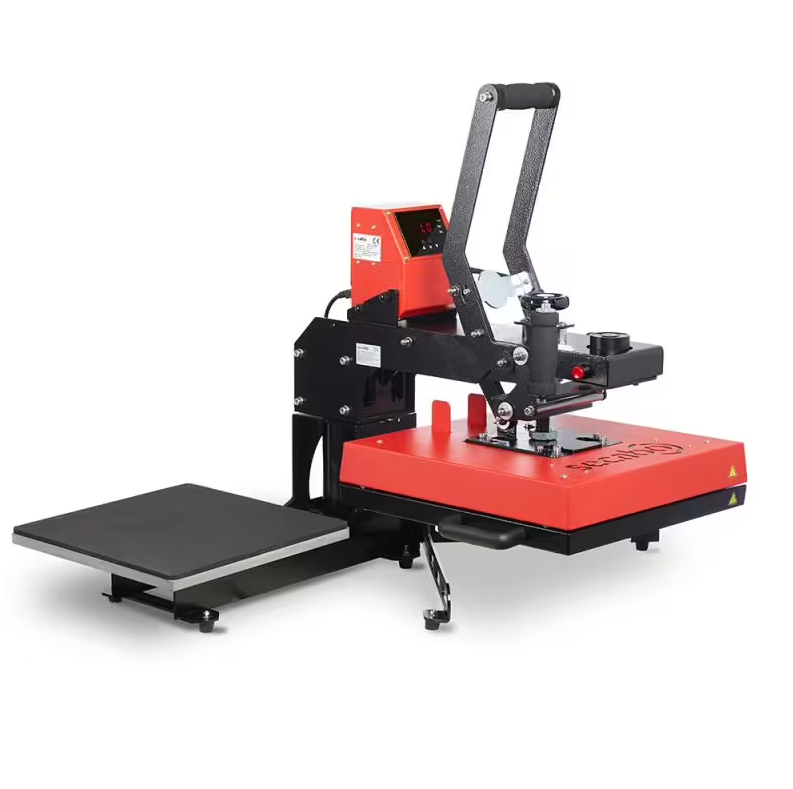

TS5 LITE Energy Saver Secabo 38 × 38 cm – Swing-Away Heat Press for Flat Surfaces
The TS5 Lite Energy Saver heat press is an easy-to-use, side-opening press designed for flat materials.
The digital controller allows you to set the pressing time and temperature. When the set time elapses, the press emits an audible signal. The pressure is adjusted using a knob located on top of the heating plate.
The large opening angle of the press ensures convenient material placement before printing.
Closing the lever starts the heat transfer process, and the press opens automatically after completion.
The modular construction of the press allows it to be expanded with a range of additional plates, such as a membrane plate or a sliding base with the option of installing two plates simultaneously—providing both beginners and professionals with the flexibility they need.
Thanks to its compact size, the TS5 Lite can also be used as a portable or mobile press, ideal for use at sports events, corporate gatherings, or outdoor activities—allowing you to create prints “on the spot.”
The TS5 Energy Saver model features a modern heating plate with additional insulation, which reduces energy consumption by approximately 60% throughout the work cycle compared to standard presses.
These new technologies also reduce the carbon footprint, contributing to environmental protection.
The auto shut-off and sleep mode during idle periods are additional features that help save energy. Efficient energy management also extends the device’s lifespan, improves performance, and accelerates return on investment.
Even heat distribution ensures consistent, high-quality print results.
Included in the Set:
Warranty: 24 months
Technical Specifications:
Device dimensions: 80 × 45 × 30 cm
Plate size: 38 × 38 cm
Maximum pressure: 250 g/cm
Maximum temperature: 225°C
Maximum pressing time: 999 seconds
Maximum swing angle: 105° (right-opening)
Voltage/Power: 230V / 50–60Hz / 1.8kW
Operating conditions: +5°C to +35°C / 30–70% humidity
Shipping weight: 65.60 kg
